KINGFLEX brand rubber foam insulation tube has a good insulation effect

KINGFLEX brand rubber foam insulation tube has a good insulation effect, flexible, effective to reduce the resonance and vibration, and good winding and toughness, easy installation, can be used for variety of curved and irregular pipes, beautiful appearance. Combined with veneer and a variety of accessories, to enhance the while system tightness.

Nominal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″,1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25 , 32, 40 and 50mm).

Standard Length with 6ft (1.83m) or 6.2ft(2m).


Product Detail

Product Tags

Description

Technical Data Sheet

Kingflex Technical Data

Property

Unit

Value

Test Method

Temperature range

°C

(-50 - 110)

GB/T 17794-1999

Density range

Kg/m3

45-65Kg/m3

ASTM D1667

Water vapor permeability

Kg/(m.s.pa)

 0.91×10 ¹³

DIN 52 615                           BS 4370 Part 2 1973

μ

-

10000



Thermal Conductivity

W/(m.k)

0.030 (-20°C)

ASTM C 518

0.032 (0°C)

0.036 (40°C)

Fire Rating

-

Class 0 & Class 1

BS 476 Part 6 part 7

 Flame Spread and Smoke Developed Index

25/50

ASTM E 84

Oxygen Index

36

GB/T 2406,ISO4589

Water Absorption,%by Volume

%

20%

ASTM C 209

Dimension Stability

5

 ASTM C534

Fungi resistance

-

Good

ASTM 21

Ozone resistance

Good

GB/T 7762-1987

Resistance to U.V. and weather

Good

ASTM G23

Advantages of product

Excellent performance.The insulated pipe is made of NBR and PVC.It doesn't contain fibrous dust, benzaldehyde and chlorofluorocarbons.Moreover,it has low conductivity&heat conductivity,good moisture resistence,and fireproof.

Widely used.The insulated pipe can be widely used in cooling unit and equipment of central air conditioning, freezing water pipe ,condensing water pipe,air ducts ,hot-water pipe and so on.

Easily to be installed.The insulated pipe not only can be easily installed with the new pipeline,but also can be used in the existing pipeline.The only  thing you need to do is to cut it,then glue it.Moreover,it doesn't have negative influence of the performance of the insulated pipe.

Complete models to choose.The wall thickness ranges from 6.25 mm to 50mm,and the inside diameter is from 6mm to 89mm.

Delivery on time.The products are stock and the quantity of supplying is large.

Personal service.We can offer the service according to the customers' requests.

Our Company

1
1
2
3
4

Company exhibition

1
3
2
4

Certificate

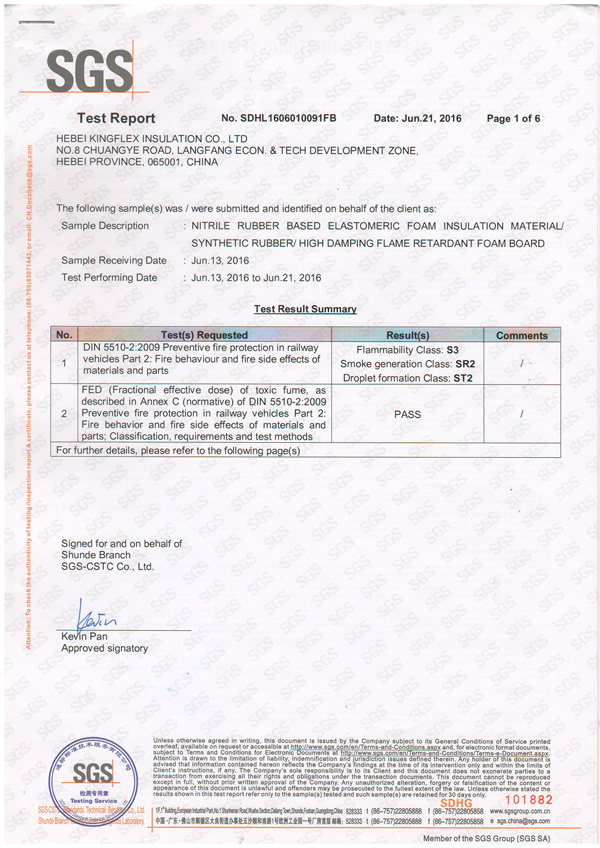

DIN5510
REACH
ROHS
