isolation pipe 1/4″ ID

Kingflex is the fiber-free, flexible, elastomeric pipe insulation for reliable protection against condensation, mold, energy loss and ultraviolet radiation in residential and commercial applications. The closed-cell nature of elastomeric foam insulation provides superior protection against thermal losses, condensation and moisture accumulation that leads to mold. It is the ideal choice for insulating mechanical piping systems.


Product Detail

Product Tags

Product Advantages

管材

1.Closed-cell structure provides excellent condensation and energy-loss control
2.Effectively retards degradation due to ultraviolet (UV) radiation
3.Flexible material with dusted, relaxed ID’s for easy installation
4.Superior toughness to withstand on-site handling
5.Built-in vapor barrier eliminates need for additional vapor retarder
6.Complete size range for HVAC/R
7.Distinguish between different pipelines
8.Distinguish between different pipelines

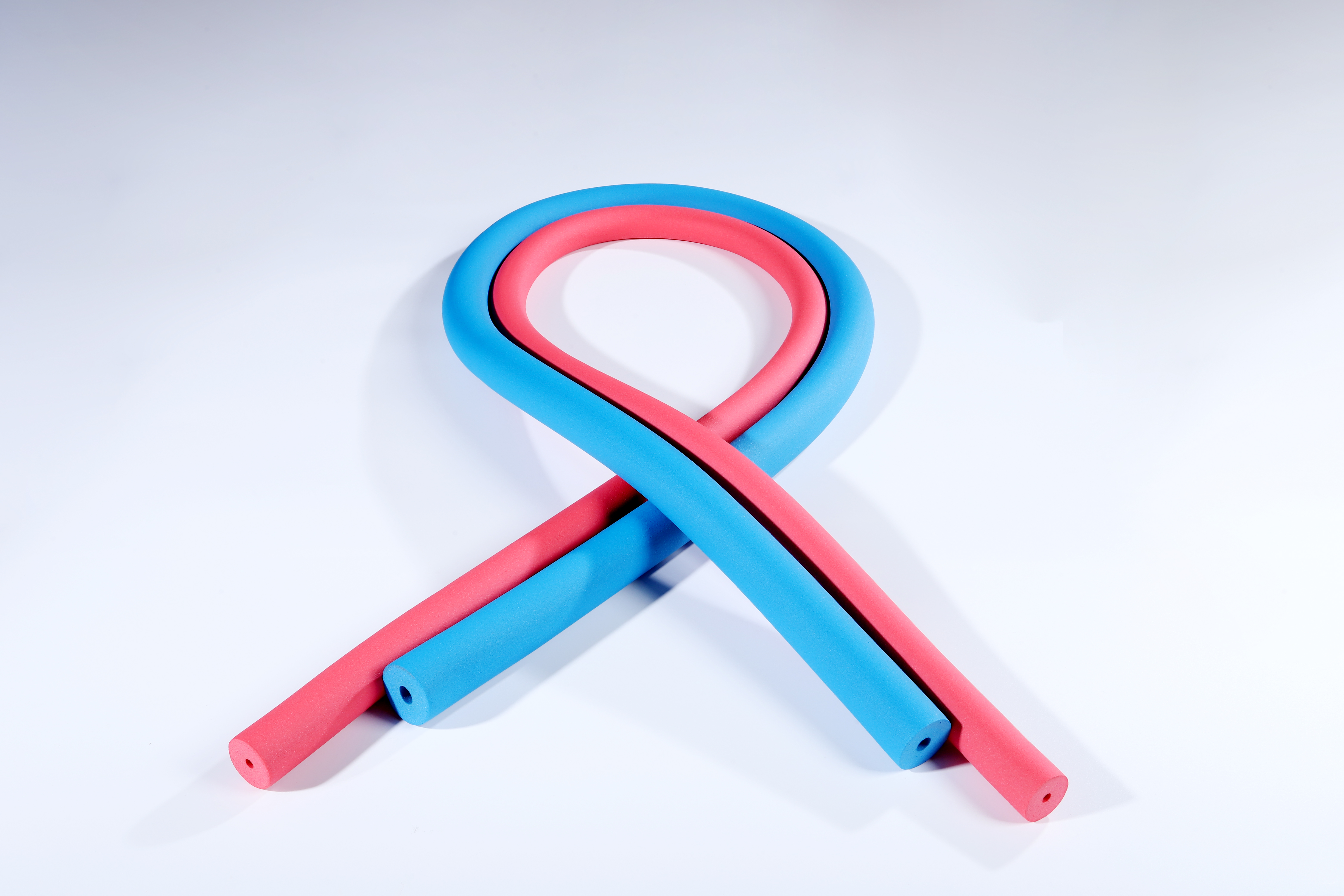

彩管

Specification

nominal wall thicknesses of 1/4”, 3/8″, 1/2″, 3/4″,1″, 1-1/4”, 1-1/2″ and 2” (6, 9, 13, 19, 25 , 32, 40 and 50mm)
Standard Length with 6ft (1.83m) or 6.2ft(2m).

Tecnical Data

 Technical Data

Property

Unit

Value

Test Method

Temperature range

°C

(-50 - 110)

GB/T 17794-1999

Density range

Kg/m3

45-65Kg/m3

ASTM D1667

Water vapor permeability

Kg/(m.s.pa)

 0.91×10 ¹³

DIN 52 615                           BS 4370 Part 2 1973

μ

-

10000

Thermal Conductivity

W/(m.k)

0.030 (-20°C)

ASTM C 518

0.032 (0°C)

0.036 (40°C)

Fire Rating

-

Class 0 & Class 1

BS 476 Part 6 part 7

 Flame Spread and Smoke Developed Index

25/50

ASTM E 84

Oxygen Index

36

GB/T 2406,ISO4589

Water Absorption,%by Volume

%

20%

ASTM C 209

Dimension Stability

5

 ASTM C534

Fungi resistance

-

Good

ASTM 21

Ozone resistance

Good

GB/T 7762-1987

Resistance to U.V. and weather

Good

ASTM G23

APPLICATION

应用

Kingflex Rubber Foam Insulation could be used in schools, hospitals, government institutions and commercial spaces of all types value the long-term performance. Its moisture-resistant characteristics make it especially valuable on chilled-water and refrigeration piping where condensation might otherwise soak through fibrous types of insulations, significantly degrading their thermal performance, leaving them susceptible to fungal growth and ultimately shortening their life cycle. Moisture-resistant Kingflex, however, maintains its physical and thermal integrity -- for the life of the mechanical system!

company

Growth in the construction industry and many other industrial segments, combined with concerns over rising energy costs and noise pollution, is fueling market demand for thermal insulation. With more than four decades of dedicated experience in manufacturing and applications, Kingflex Insulation Company is riding on the top of the wave.

美化过的

OUR CUSTOMERS

展会客户

Workshop

车间
车间-2
